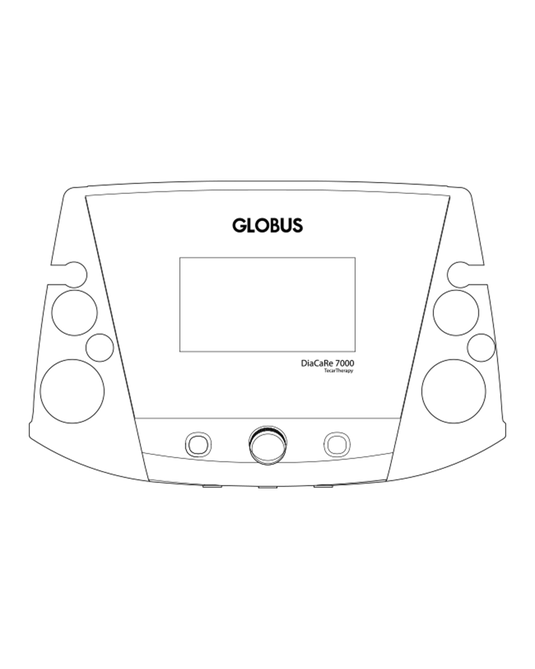

DiaCaRe 7000
The device uses both resistive and capacitive modes for the treatment of acute pain as well as acute and chronic conditions of the musculoskeletal system.
Special features

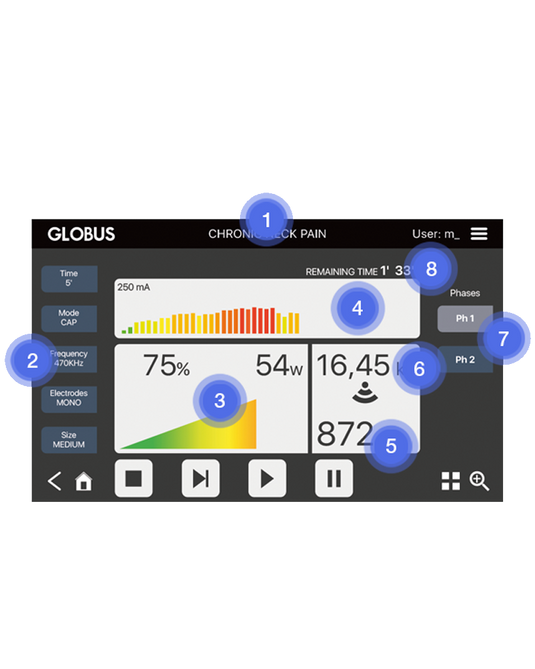

Real-time information
1. User name and programme name
2. Parameters of the treatment phase
3. Power percentage
4. Biofeedback
5. Impedance
6. Energy absorbed
7. Treatment phases
8. Remaining time
DiaCaRe 7000 programs
Medical programmes
Bone and joint disorders
Hallux valgus – Arthritis – Arthrosis – Cervical arthrosis – Dorsal or lumbar arthrosis – Acute fracture – Sub-acute fracture – Baker’s cyst – Patellofemoral chondropathy (cartilage lesion) – Herniated disc – Coxarthrosis – Gonarthrosis – Metatarsalgia – Osteochondrosis/Osteochondritis – Periarthritis – Periostitis – Post hip surgery – Disc protrusion – Rhiarthrosis – Sub-acromial conflict syndrome – Ulnar styloiditis – Acute cervicalgia – Chronic cervicalgia – Cervicaobrachial syndrome – Acute lumbago – Chronic lumbago – Lumbosciatica – Bursitis – Adhesive capsulitis – Epicondylitis – Epitrocleitis
Tendon and ligament disorders
1st degree ligament injuries – 2nd degree ligament injuries – 3rd degree ligament injuries – Epicondylitis – Epitrocleitis – Plantar fasciitis – Iliotibial band syndrome – Acute Achilles tendinitis – Chronic Achilles tendinitis – Acute tendinitis – Acute tendinitis – Chronic tendinitis – Pes anserinus tendinitis – De Quervain’s tendonitis/Radial styloiditis – Patellar tendinitis – Tenosynovitis – Sprain traumas with oedema – Sprain traumas without oedema – Acute cervical pain – Chronic cervical pain – Cervicaobrachial syndrome – Metatarsalgia – Acute lower back pain – Chronic lower back pain – Lumbosciatica – Acute osteitis pubis – Chronic osteitis pubis
Muscle and soft tissue disorders
1st degree muscle injury – 2nd degree muscle injury – 3rd degree muscle injury – Acute cervicalgia – Chronic cervicalgia – Cervicaobrachial syndrome – Whiplash injury – Acute lower back pain – Chronic lower back pain – Lumbosciatica – Acute osteitis pubis – Chronic osteitis pubis
Lymphatic and vascular disorders
Chronic lymphoedema – Post-traumatic lymphoedema – Phlebitis – Distortion trauma with oedema
Nervous disorders
Nerve compression – Piriformis syndrome – Acute lower back pain – Chronic lower back pain – Lumbosciatica – Acute osteitis pubis – Chronic osteitis pubis
Other programmes
Pulsed programmes
Pulsed 90 – Pulsed 70 – Pulsed 50
Scanning program
Treatment to apply energy in a particularly even and distributed manner
Transdermal delivery
Treatment to promote the absorption of active ingredients in the treated area
Non-thermal programs
Treatment for tissue bio-stimulation without heat generation
Muscle recovery
Muscle contracture – Muscle cool down
Features
Colour touchscreen display
Visible area size 7"
Nominal Power (NP)
350W ± 10%
Emission frequencies
300kHz, 400kHz, 448kHz, 470kH,
700kHz, 1000kHz, 1200kHz ± 10%
Treatment methods
Capacitive and resistive
Capacitive Electrodes
3 Ø sizes (30, 50, 70 mm)
Resistive Electrodes
3 Ø sizes (30, 50, 70 mm)
Mains power supply
230V AC, 50-60Hz, 3.7A
115V AC, 50-60Hz, 7.4A
Dimensions
515x340x170 mm
Weight
11.5 kg

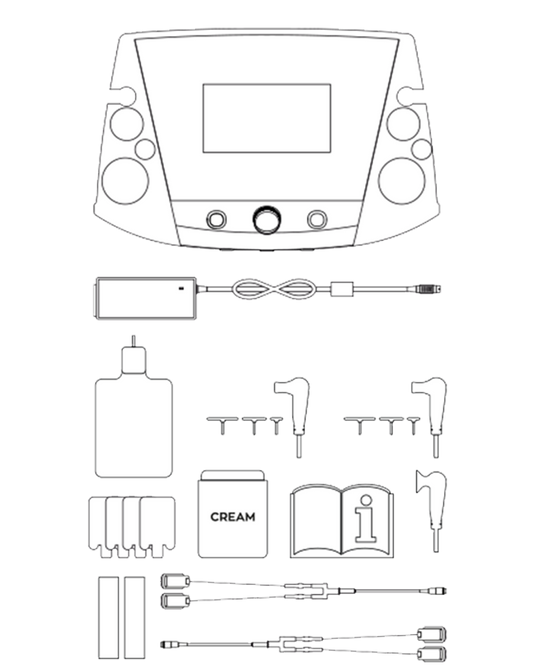

DiaCaRe 7000 Standard equipment
G5210 equipment
1 DIACARE 7000 Tecartherapy Unit
1 return electrode (flexible plate)
1 resistive monopolar handpiece with 3 electrodes Ø (30, 50, 70 mm)
1 monopolar capacitive handpiece with 3 electrodes Ø (30, 50, 70 mm)
1 bipolar handpiece Ø 50 mm
1 Hands-free treatment kit
1 1000 ml jar of conductive cream
1 power supply cable
1 operating manual
DiaCaRe 7000 Optional Kits
G5651 fascia tools kit G5651
GLOBUS has combined DiaCaRe technology with 'Fascia Tools', special ergonomic electrodes designed for the mobilisation and advanced treatment of all soft tissue disorders.
1 case
1 large DiaBlade
1 small DiaBlade
1 Dia Trigger Point
1 Dia Spine
G6421 Intima kit
The "Intima Kit" is an accessory of the GLOBUS Tecartherapy line suitable for treatment of the pelvic area. The kit consists of 1 handpiece + 2 capacitive monopolar electrodes and can be used with all GLOBUS Tecartherapy devices. The capacitive probes allow the energy to be delivered in a targeted and safe manner. They are specially designed for use with disposable probe covers, which guarantee maximum hygiene during treatment without affecting the therapeutic effects.
1 case
1 capacitive handpiece for DC7K Intima kit
1 capacitive probe Ø 10 mm X 90 mm
1 capacitive probe Ø 20 mm X 90 mm
1 pack of Lubrigima conductive gel specifically for treatments in intimate areas
1 box of 10 PIC probe covers
1 user manual
