Special features

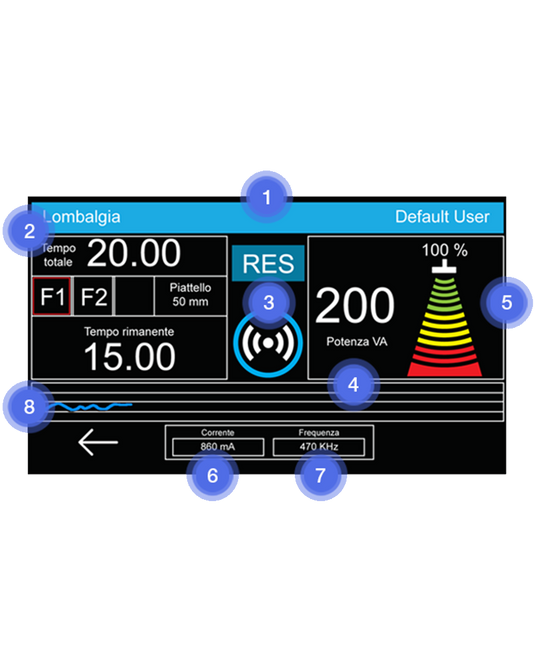

Real-time information
1. User name and programme name
2. Duration and phases of treatment
3. Emission mode
4. Instantaneous power output
5. Power percentage
6. Current
7. Emission frequency
8. Absorption graph
DiaCaRe 5000 programs
Medical programmes
Bone and joint disorders
Ankle trauma – Lower back pain – Shoulder pain – Cervical pain syndromes – Joint pathologies – Knee arthrosis – Sciatica – Disc hernia – Post-surgical treatment of femoral fractures
Tendon and ligament disorders
Tendon injury pain – Ankle injury – Lumbago – Shoulder pain – Cervical pain syndromes – Sciatica
Muscle and soft tissue disorders
Pain from muscular injuries – Lower back pain – Shoulder pain – Cervical pain syndromes – Muscle strains – Whiplash – Sciatica
Nervous disorders
Lower back pain – cervical pain syndromes – Sciatica – piriformis syndrome
Other programmes
Pulsed programmes
Pulsed 90 – Pulsed 70 – Pulsed 50
Scanning program
Treatment to apply energy in a particularly even and distributed manner
Transdermal delivery
Treatment to promote the absorption of active ingredients in the treated area
Non-thermal programs
Programme for tissue bio-stimulation without heat generation
Features
Colour touchscreen display
Visible area size 4.3"
Nominal Power (NP)
180W ± 10%
Emission frequencies
300kHz, 400kHz, 448kHz, 470kHz,
700kHz, 1000kHz ± 10%
Treatment methods
Capacitive and resistive
Capacitive Electrodes
3 Ø sizes (30, 50, 70 mm)
Resistive Electrodes
3 Ø sizes (30, 50, 70 mm)
Resistive Electrodes
3 Ø sizes (30, 50, 70 mm)
Mains power supply
100-240V AC, 50-60Hz, 3.7A
Dimensions
170x220x60 mm
Weight
1.04 kg

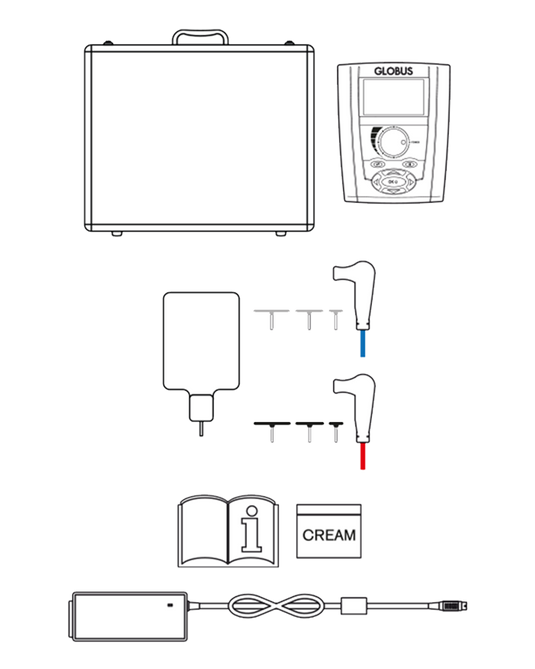

DiaCaRe 5000 Standard equipment
G3488 equipment
1 case
1 DIACARE 7000 Tecar therapy Unit
1 resistive monopolar handpiece with 3 electrodes Ø (30, 50, 70 mm)
1 monopolar capacitive handpiece with 3 electrodes Ø (30, 50, 70 mm)
1 500ml jar of conductive cream
1 power supply cable
1 operating manual
DiaCaRe 5000 Optional Kits

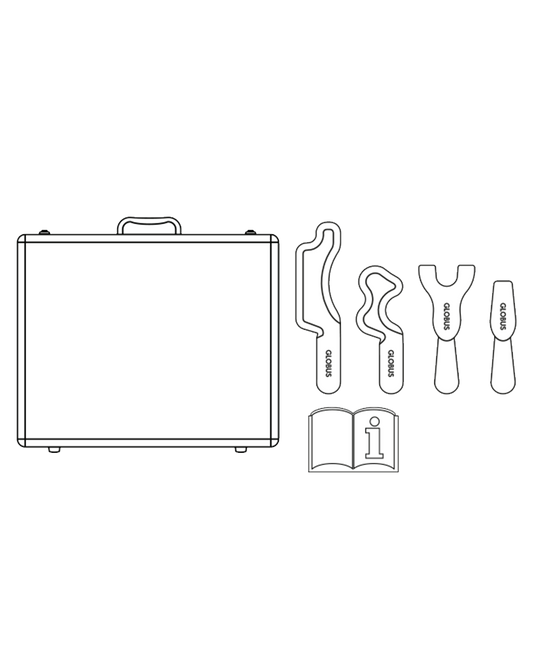

G5651 "Fascia Tools" kit
GLOBUS has combined DiaCaRe technology with 'Fascia Tools', special ergonomic electrodes designed for the mobilisation and advanced treatment of all soft tissue disorders.
1 case
1 large DiaBlade
1 small DiaBlade
1 Dia Trigger Point
1 Dia Spine

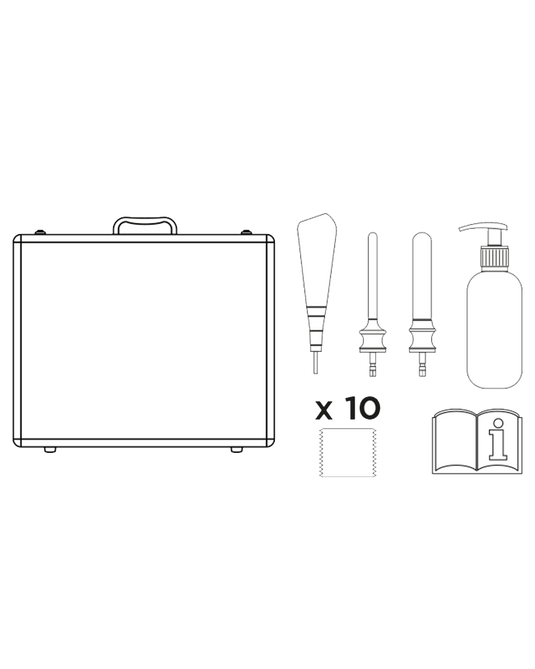

G6421 "Intima" kit
The "Intima Kit" is an accessory of the GLOBUS Tecar therapy line suitable for treatment of the pelvic area. The kit consists of 1 handpiece + 2 capacitive monopolar electrodes and can be used with all GLOBUS Tecar therapy devices. The capacitive probes allow the energy to be delivered in a targeted and safe manner. They are specially designed for use with disposable probe covers, which guarantee maximum hygiene during treatment without affecting the therapeutic effects.
1 case
1 capacitive handpiece for DC5K Intima kit
1 capacitive probe Ø 10 mm X 90 mm
1 capacitive probe Ø 20 mm X 90 mm
1 pack of Lubrigima conductive gel specifically for treatments in intimate areas
1 box of 10 PIC probe covers
1 user manual

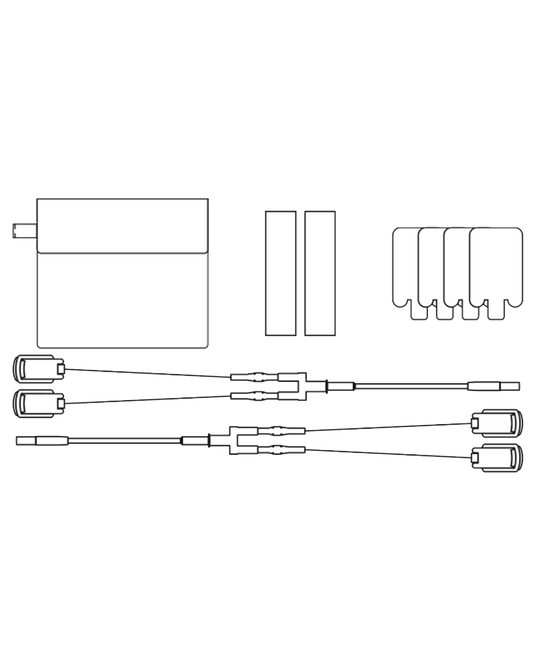

G5981 hands-free kit
The ‘hands-free’ kit has cables and special electrode pads that allow the therapist to treat the patient by integrating Tecar therapy with manual or kinetic techniques.
1 bag
1 resistive cable
2 Y cables (1 blue, 1 black)
4 alligator clips (2 blue, 2 black)
4 medium adhesive electrodes
2 elastic bands
